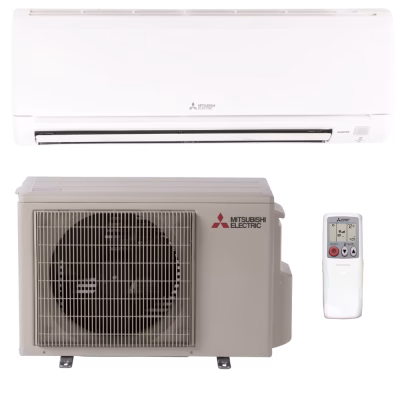

三菱分体空调24,000 BTU 16 SEER Wall Mounted Mitsubishi Mini Split WR Single Zone Heat Pump - MZ-WR24NA
24,000 BTU 16 SEER Wall Mounted Mitsubishi Mini Split WR Single Zone Heat Pump - MZ-WR24NA | |
---|---|
SKU | MSZ-WR24NA / MUZ-WR24NA |
Refrigerant Charge | Pre-Charged For: 25' |
Weight (in lbs) | 149.000000 |
AHRI Certificate Number | 202397880 |
Brand/Manufacturer | Mitsubishi |
Controller | Wireless Included |
Additional Information | Heat Pump |
Additional Information | Maximum Line Set Length: 100' |
Additional Information | Drain: 5/8" |
HSPF | 8.5 |
Cooling BTU | 22,400 BTU |
Heating BTU | 26,000 BTU |
Maximum CFM | 318-702 CFM |
Decibel Level (dBA) | Indoor Unit: 32-50 | Outdoor Unit: 55-57 |
Energy Star | No |
Refrigerant | R410A |
Capacity | Dehumidification Rate: 0.29 gal/hr |
SEER1 (Efficiency) | 16-17 |
EER | 8 |
Liquid Line | 3/8" |
Suction Line | 5/8" |
Electrical | 208/230V 1 Phase 60 Hz |
Phase | Single Phase |
Max Breaker Size | 15 |
Min. Breaker Size | 14 |
Amperage Requirement | 15 |
BTU/Tonnage | 24,000 BTU/2 Ton |
Mini Split Type | Wall Mounted |
Min/Max Outdoor Temp for Heating | 5°-75° |
Min/Max Outdoor Temp for Cooling | 32°-115° |
Zone Compatibility | Single Zone |
Operating Mode | Cooling, Heating |
Height | Indoor Unit: 12" | Outdoor Unit: 34-5/8" |
Width | Indoor Unit: 36-5/16" | Outdoor Unit: 33-1/16" |
Depth | Indoor Unit: 9-13/16" | Outdoor Unit: 13" |
Additional Info | Indoor Unit Weight: 28 lbs | Outdoor Unit Weight: 121 lbs |
Warranty | 10 Years with Online Registration |
24,000 BTU 16 SEER Wall Mounted Mitsubishi Mini Split WR Single Zone Heat Pump - MZ-WR24NA | |
---|---|
SKU | MSZ-WR24NA / MUZ-WR24NA |
Refrigerant Charge | Pre-Charged For: 25' |
Weight (in lbs) | 149.000000 |
AHRI Certificate Number | 202397880 |
Brand/Manufacturer | Mitsubishi |
Controller | Wireless Included |
Additional Information | Heat Pump |
Additional Information | Maximum Line Set Length: 100' |
Additional Information | Drain: 5/8" |
HSPF | 8.5 |
Cooling BTU | 22,400 BTU |
Heating BTU | 26,000 BTU |
Maximum CFM | 318-702 CFM |
Decibel Level (dBA) | Indoor Unit: 32-50 | Outdoor Unit: 55-57 |
Energy Star | No |
Refrigerant | R410A |
Capacity | Dehumidification Rate: 0.29 gal/hr |
SEER1 (Efficiency) | 16-17 |
EER | 8 |
Liquid Line | 3/8" |
Suction Line | 5/8" |
Electrical | 208/230V 1 Phase 60 Hz |
Phase | Single Phase |
Max Breaker Size | 15 |
Min. Breaker Size | 14 |
Amperage Requirement | 15 |
BTU/Tonnage | 24,000 BTU/2 Ton |
Mini Split Type | Wall Mounted |
Min/Max Outdoor Temp for Heating | 5°-75° |
Min/Max Outdoor Temp for Cooling | 32°-115° |
Zone Compatibility | Single Zone |
Operating Mode | Cooling, Heating |
Height | Indoor Unit: 12" | Outdoor Unit: 34-5/8" |
Width | Indoor Unit: 36-5/16" | Outdoor Unit: 33-1/16" |
Depth | Indoor Unit: 9-13/16" | Outdoor Unit: 13" |
Additional Info | Indoor Unit Weight: 28 lbs | Outdoor Unit Weight: 121 lbs |
Warranty | 10 Years with Online Registration |
三菱分体空调Mitsubishi 12000 BTU 23.1 SEER Ductless Heat Pump Mini Split AC Outdoor indoor Unit MUZ-GL Series
Model Number
MUZ-GL12NA-U2
Dimensions
31-1/3" W x 11-1/5" D x 21-5/9" H
Documents
Warranty
Compressor: 10 years | Parts: 10 years
三菱 12,000 BTU 23.1 SEER MUZ-GL 热泵室外机 型号 MUZ-GL12NA-U2 尺寸 31-1/3" 宽 x 11-1/5" 深 x 21-5/9" 高 文件 产品规格表 保修 压缩机:10 年 | 零件:10 年Model Number
MUZ-GL12NA-U2
Dimensions
31-1/3" W x 11-1/5" D x 21-5/9" H
Documents
Warranty
Compressor: 10 years | Parts: 10 years
三菱 12,000 BTU 23.1 SEER MUZ-GL 热泵室外机 型号 MUZ-GL12NA-U2 尺寸 31-1/3" 宽 x 11-1/5" 深 x 21-5/9" 高 文件 产品规格表 保修 压缩机:10 年 | 零件:10 年三菱分体空调Mitsubishi 24000 BTU Mini Split Wall Mount Heat Pump 18 SEER System
Mitsubishi 24000 BTU Ductless Heat Pump Mini Split AC Outdoor Unit MUZ-HM Series
Model Number
MUZ-HM24NA-U2
Dimensions
33-1/6" W x 13" D x 34-5/8" H
Documents
Warranty
Compressor: 10 years | Parts: 10 years
Mitsubishi 24000 BTU Ductless Mini Split Wall Mounted Indoor Unit MSZ-HM Series
Model Number
MSZ-HM24NA-U1
Dimensions
36-5/16" W x 9-13/16" D x 12" H
Documents
Warranty
Parts: 10 years
Mitsubishi 24000 BTU Ductless Heat Pump Mini Split AC Outdoor Unit MUZ-HM Series
Model Number
MUZ-HM24NA-U2
Dimensions
33-1/6" W x 13" D x 34-5/8" H
Documents
Warranty
Compressor: 10 years | Parts: 10 years
Mitsubishi 24000 BTU Ductless Mini Split Wall Mounted Indoor Unit MSZ-HM Series
Model Number
MSZ-HM24NA-U1
Dimensions
36-5/16" W x 9-13/16" D x 12" H
Documents
Warranty
Parts: 10 years
三菱分体空调Mitsubishi 9000 BTU Ductless Heat Pump Mini Split AC Outdoor Unit - MUZ-HM09NA-U2
Model Number
MUZ-HM09NA-U2
Dimensions
31-1/2" W x 11-1/4" D x 21-5/8" H
Documents
Warranty
Compressor: 10 years | Parts: 10 years
Model Number
MUZ-HM09NA-U2
Dimensions
31-1/2" W x 11-1/4" D x 21-5/8" H
Documents
Warranty
Compressor: 10 years | Parts: 10 years
三菱分体空调批发Mitsubishi 12000 BTU Mini Split Heat Pump 23 SEER2 Condenser - MUZ-GS12NA-U1
三菱智能室外空调热泵Mitsubishi 60,000 BTU 8-Zone Heat Pump Unit (MXZ-SM60NAM2-U1)
三菱空调9000 BTU 115V 迷你分体壁挂式室内+室外机 MSZ-JP 系列Mitsubishi 9000 BTU 115V Ductless Mini Split Wall Mounted Indoor Unit MSZ-JP Series
Model Number
MSZ-JP09WA-U1
Dimensions
31-7/16" W x 9-1/8" D x 11-5/8" H
Documents
Warranty
Parts: 5 years
outdoor :MUZ-JP09NA indoor :MSZ-JP09NAModel Number
MSZ-JP09WA-U1
Dimensions
31-7/16" W x 9-1/8" D x 11-5/8" H
Documents
Warranty
Parts: 5 years
outdoor :MUZ-JP09NA indoor :MSZ-JP09NA
